Discontinued

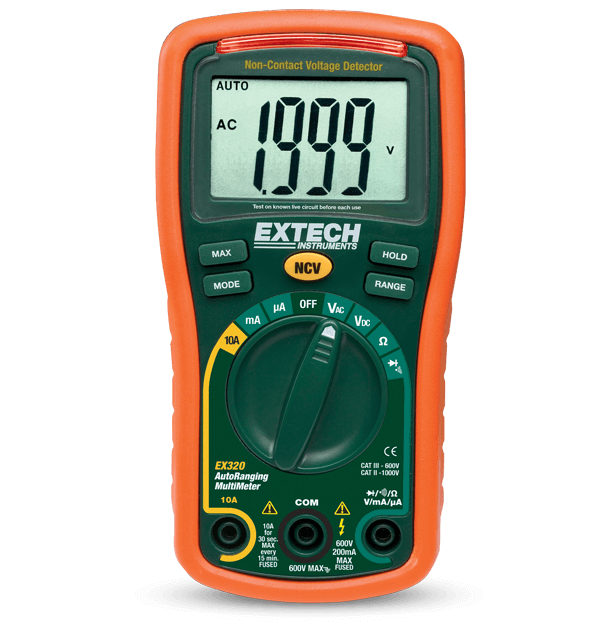

Extech EX320
8 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX320, a compact auto ranging multimeter, features extra large 2000 count display and a built in, non-contact AC Voltage detector. Its large LCD display can display continuity, diode test, and max hold functions, as well as AC/DC voltage/current and resistance measurements. A rubber holster protects the meter. UL listed Cat III – 600 Volt. Includes test leads, two AA batteries, and a tilt stand.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 600V |
| 交流电流 | 0.1µA to 10A |
| 导通性 | Yes |
| 电阻 | 0.1Ω to 20MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电流 | 0.1µA to 10A |
| 非接触式试电笔 (NCV) | 100 to 600VAC |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII - 1000V, CATIII - 600V |
| 尺寸 | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 显示屏 | 2000-count segment LCD |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, UL |
| 重量 | 9oz (260g) |
