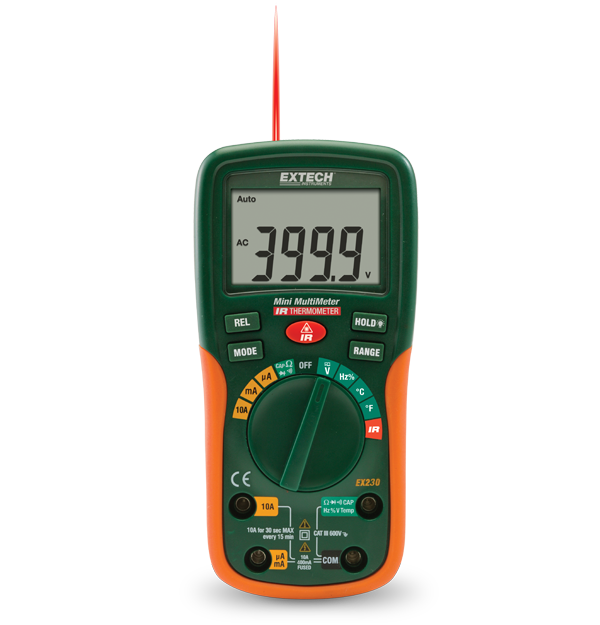

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
规格
| 一般参数 | |
|---|---|
| 二极管测试 | Yes |
| 交流电压 | 0.1mV to 600V |
| 交流电流 | 0.1µA to 10A |
| 占空比 | 0.1% to 99.9% |
| 导通性 | Yes |
| 温度（K 型）最大分辨率 | -4 to 1400°F (-20 to 760°C) |
| 温度（红外）基本精度 | -5 to 446°F (-20 to 230°C) |
| 电容 | 0.01nF to 100µF |
| 电阻 | 0.1Ω to 40MΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电压基本精度 | ±0.5% |
| 直流电流 | 0.1µA to 10A |
| 频率 | 0.001Hz to 10MHz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 显示屏 | 4000-count segment LCD |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 9.17oz (260g) |
资源和支持
User Manual
Extech EX230 手册
