Discontinued

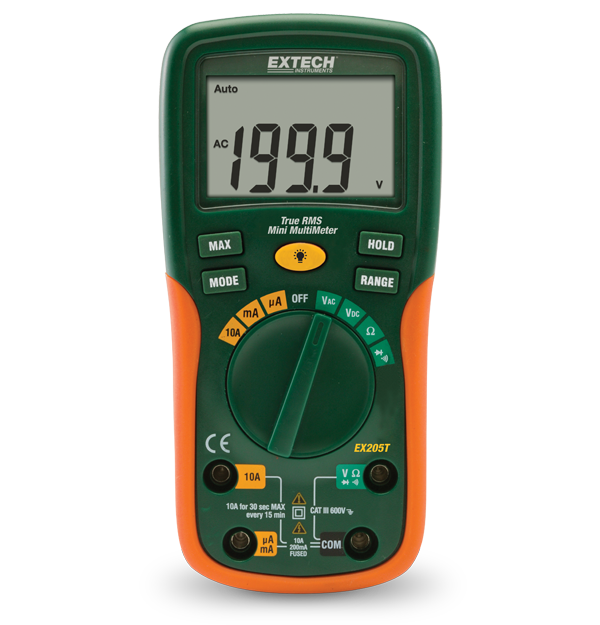

Extech EX205T

TrueRMS Digital Multimeter

The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.

规格

一般参数
二极管测试 Yes
交流电压 600V
交流电压最大分辨率 0.1mV
交流电流 10A
交流电流最大分辨率 0.1µA
导通性 Yes
电阻 20MΩ
电阻最大分辨率 0.1Ω
直流电压 600V
直流电压基本精度 ±0.5%
直流电压最大分辨率 0.1mV
直流电流 10A
直流电流最大分辨率 0.1µA
真有效值 Yes
其他详情
保修 2 years
安全等级 CATIII - 600V
尺寸 5.8 × 2.9 × 1.6" (147 × 76 × 42mm)
电源 1 × 9V battery
认证 CE, NIST
重量 9.17oz (260g)

资源和支持

Datasheet

Extech EX205T EX210T 数据表

User Manual

Extech EX205T 手册
