Discontinued

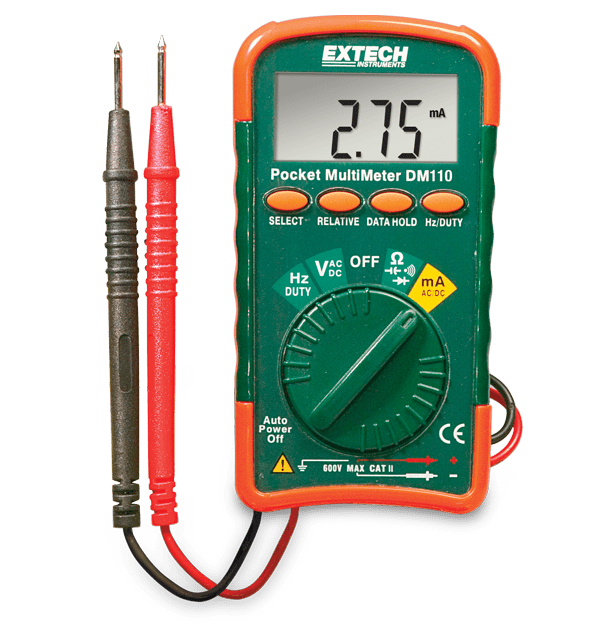

Extech DM110

Mini Pocket MultiMeter

Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.

规格

一般参数
二极管测试 Yes
交流电压 500V
交流电压基本精度 ±2.3%
交流电压最大分辨率 1mV
交流电流 400mA
交流电流基本精度 ±2.5%
交流电流最大分辨率 0.01mA
占空比 0.1% to 99.9%
占空比基本精度 ±1.2%
占空比最大分辨率 0.10%
导通性 Yes
电容 100µF
电容最大分辨率 0.001nF
电阻 400 to 40MΩ
电阻最大分辨率 0.1Ω
直流电压 500V
直流电压基本精度 ±1.3%
直流电压最大分辨率 1mV
直流电流 400mA
直流电流基本精度 ±2.0%
直流电流最大分辨率 0.01mA
频率 5Hz to 10MHz
频率基本精度 ±2%
频率最大分辨率 0.001Hz
其他详情
保修 2 years
安全等级 CATII - 600V
尺寸 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm)
电源 1 × CR2032 (3V) battery
认证 CE, UL
重量 1.7oz (50g)
