Discontinued

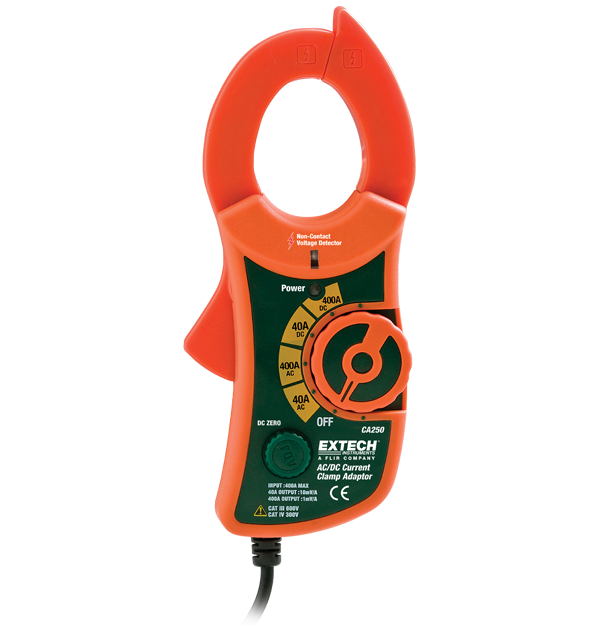

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| 交流电流基本精度 | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| 直流电流 | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| 直流电流基本精度 | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| 钳口尺寸 | 30mm (1.2") |
| 频率 | 50/60Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V, CATIV - 300V |
| 尺寸 | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 8oz (226g) |
