Discontinued

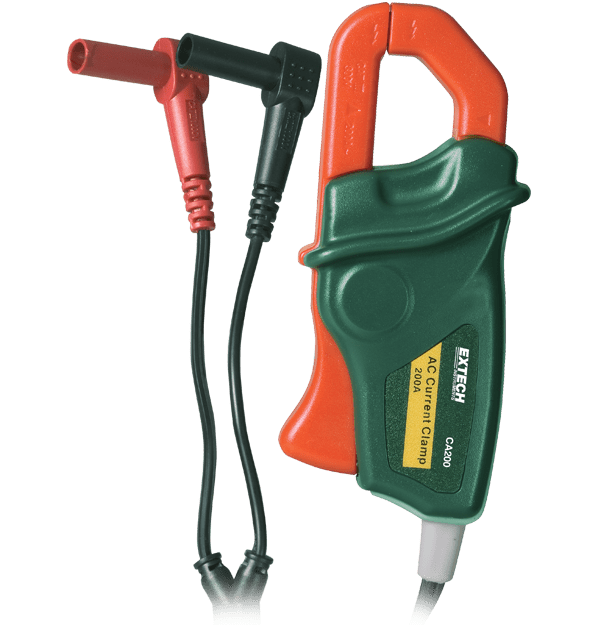

Extech CA200
200A AC Clamp Adaptor
The Extech CA200 is a 200 A AC Clamp Adaptor with 1 mV AC output per amp. It has a 16 mm (0.6 in) clamp jaw and ± 2% accuracy. Comes complete with a built in 163 cm (5.3 ft) cable with banana plugs and a two year warranty.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 0 to 200A (1mV per Amp output) |
| 交流电流基本精度 | ±(2.0% of reading + 0.5A) + accuracy of indicating device |
| 钳口尺寸 | 0.62" (16mm) |
| 频率 | 50/60Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII - 600V, CATIII - 300V |
| 尺寸 | 4.3 × 1.9 × 1.3" (111 × 50 × 33mm) |
| 认证 | CE |
| 重量 | 4.5 oz. (129g) |
资源和支持
User Manual
Extech CA200 手册
