Discontinued
Extech AUT35

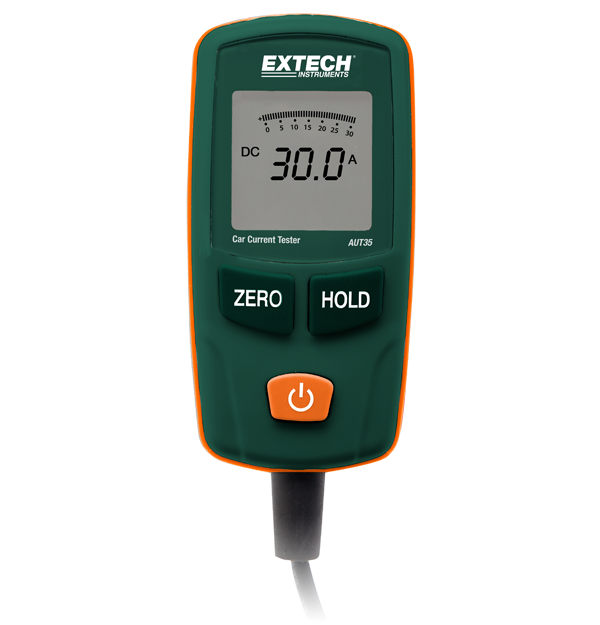

Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
规格
| 一般参数 | |
|---|---|
| 检测距离 | <0.2" |
| 直流电压 | 48V DC |
| 直流电流 | 0 to 30A DC |
| 直流电流基本精度 | 100mA |
| 直流电流最大分辨率 | ±(2.0% of reading + 2 digits) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 68g (0.15 lbs.) |
