Discontinued

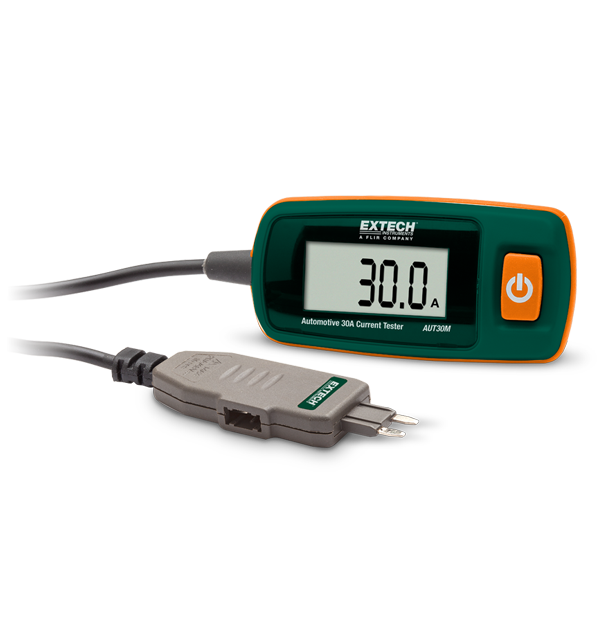

Extech AUT30M
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 71 cm (28 in) connector cable.
规格
| 一般参数 | |
|---|---|
| 检测距离 | <0.2" |
| 电缆长度 | 71cm (2.3 ft.) |
| 直流电压 | 48V DC |
| 直流电流 | 0 to 30A DC |
| 直流电流基本精度 | 10mA |
| 直流电流最大分辨率 | ±(2.0% of reading + 2 digits) |
| 其他详情 | |
|---|---|
| 保修 | 1 year |
| 尺寸 | 159 × 25mm (6.25 × 1") |
| 电源 | 1 × A23G (12V) battery |
| 认证 | CE |
| 重量 | 42g (1.5 oz) |
Export Restrictions
