Discontinued

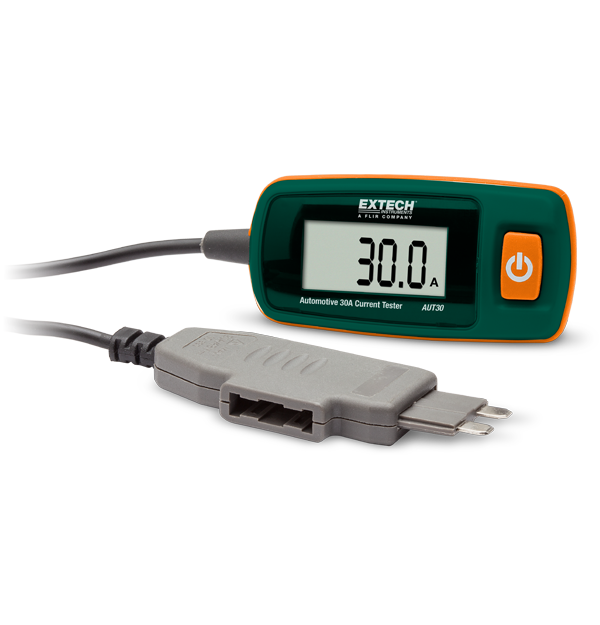

Extech AUT30
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30 Current Tester. ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
规格
| 一般参数 | |
|---|---|
| 检测距离 | <0.2" |
| 电缆长度 | 71cm (2.3 ft.) |
| 直流电压 | 48V DC |
| 直流电流 | 0 to 30A DC |
| 直流电流基本精度 | 10mA |
| 直流电流最大分辨率 | ±(2.0% of reading + 2 digits) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 159 × 25mm (6.25 × 1") |
| 电源 | 1 × A23G (12V) battery |
| 认证 | CE |
| 重量 | 42g (1.5 oz) |
