Discontinued

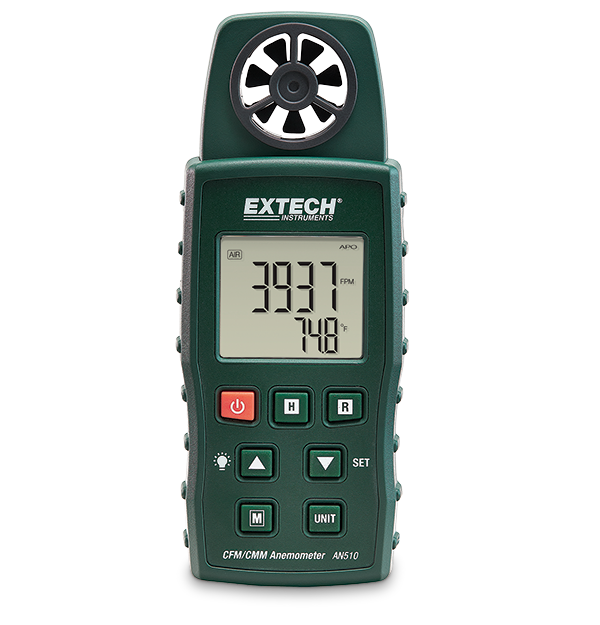

Extech AN510
CMM/CFM Anemometer + Type-K
The Extech AN510 is a convenient 4-in-1 Anemometer that measures air velocity, air flow, air temperature, and Type-K temperature. Includes a built-in low friction ball bearing mini vane wheel for high accuracy. The Type-K temperature probe function measures surface temperature up to 1300°C (2372°F). It features large dual LCD with backlighting, data hold, and min/max function.
规格
| 一般参数 | |
|---|---|
| 气量 (CFM) 最大分辨率 | 0.001 CFM |
| 温度（K 型）最大分辨率 | -148°F to 2372°F (-100°C to 1300°C) |
| 温度（N 型） | ±(0.4% + 1.8°F/1°C) |
| 温度（N 型）基本精度 | 0.1° |
| 温度（空气） | 32 to 122°F (0 to 50°C) |
| 温度（空气）基本精度 | 0.1° |
| 温度（空气）最大分辨率 | ±2.5°F (±1.2°C) |
| 风速 (ft/min) | 80 to 3937 ft/min |
| 风速 (ft/min) 基本精度 | ±3% full scale |
| 风速 (ft/min) 最大分辨率 | 1ft/min |
| 风速 (km/h) | 1.4 to 72km/h |
| 风速 (km/h) 基本精度 | ±3% full scale |
| 风速 (km/h) 最大分辨率 | 0.1km/h |
| 风速 (m/s) | 0.4 to 20m/s |
| 风速 (m/s) 基本精度 | ±3% full scale |
| 风速 (m/s) 最大分辨率 | 0.1m/s |
| 风速 (mph) | 0.9 to 44.7MPH |
| 风速 (mph) 基本精度 | ±3% full scale |
| 风速 (mph) 最大分辨率 | 0.1MPH |
| 风速（节） | 0.8 to 38.8 knots |
| 风速（节）基本精度 | ±3% full scale |
| 风速（节）最大分辨率 | 0.1knots |
| 风量 (CFM) | 0.847 to 1,271,300 CFM |
| 风量 (CMM) | 0.024 to 36,000 CMM |
| 风量 (CMM) 最大分辨率 | 0.001 CMM |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 叶片 | 1" (27mm) |
| 尺寸 | 5.5 × 1.8 ×1.2" (141 × 45 × 20mm) |
| 电源 | 3 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 5.6oz (160g) |
资源和支持
User Manual
Extech AN510 手册
