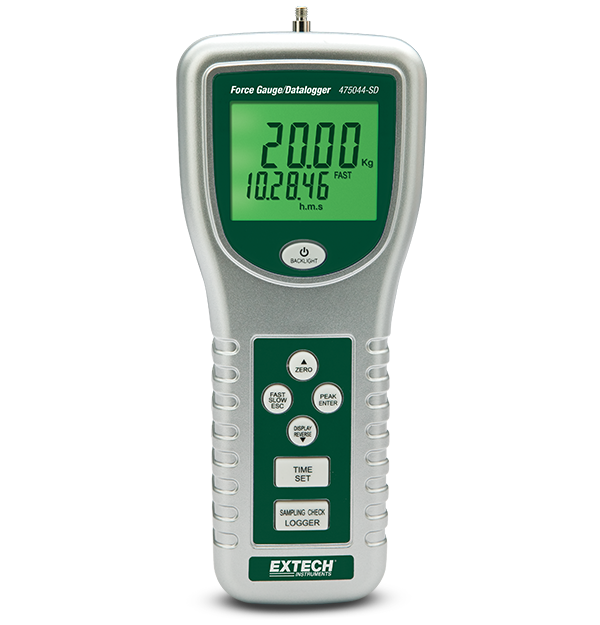

Extech 475044-SD
High Capacity Force Gauge/Datalogger
The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
规格
| 一般参数 | |
|---|---|
| 传感器类型 | Load cell |
| 内存 | SD Card |
| 力 | 44lbs, 20kg, 196 Newtons |
| 力的基本精度 | ±(0.5%) |
| 力的最大分辨率 | 0.01lbs, 0.01kg, 0.05 Newtons |
| 更新频率 | Fast mode 0.2secs; Slow mode 0.6secs |
| 满量程检测 | 2.00mm |
| 过载容量 | 30kg |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| 电源 | 6 × AA batteries |
| 认证 | CE |
| 重量 | 1.4 lbs (650g) |
