Discontinued

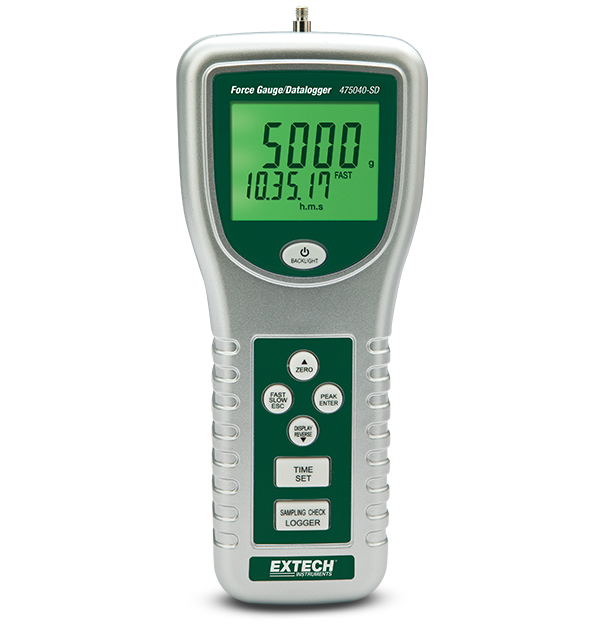

Extech 475040-SD
Digital Force Gauge/Datalogger
The Extech 475040-SD Digital Force Gauge/Datalogger dates, time stamps, and stores up to 2 M of push/pull readings on an SD card in Excel format for easy transfer to a PC. Featuring a 5 digit LCD display with peak hold, exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. It has 5 kg/176 oz/49 Newtons measurement capacity with 0.5% basic accuracy and auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel, and hook for tension), and 6 AA batteries.
规格
| 一般参数 | |
|---|---|
| 传感器类型 | Load cell |
| 内存 | SD Card |
| 力 | 176oz, 5000g, 49 Newtons |
| 力的基本精度 | ±(0.4%) |
| 力的最大分辨率 | 0.05oz, 1g, 0.01 Newtons |
| 更新频率 | Fast mode 0.2secs; Slow mode 0.6secs |
| 满量程检测 | 2.00mm |
| 过载容量 | 10kg |
| 其他详情 | |
|---|---|
| 保修 | 2years |
| 尺寸 | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| 电源 | 6 × AA batteries |
| 认证 | CE, NIST |
| 重量 | 1.4 lbs (650g) |
Export Restrictions
