Discontinued

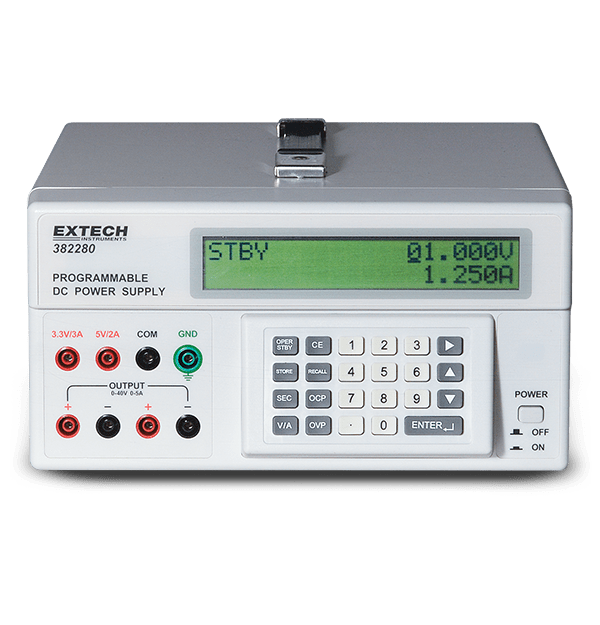

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
规格
| 一般参数 | |
|---|---|
| 固定输出 | 5V/2A, 3.3V/3A |
| 波纹和噪声 | Voltage (mVrms): 3mV Current (mArms): 3mA |
| 输出电压 | 0 to 40V |
| 输出电压基本精度 | 0.05% ± 9mV |
| 输出电压最大分辨率 | 1mV |
| 输出电流 | 0 to 5A |
| 输出电流基本精度 | 0.2% ± 9mA |
| 输出电流最大分辨率 | 1mA |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| 电源 | 110 or 220VAC, 50/60Hz |
| 认证 | CE |
| 重量 | 8.4lbs (3.8kg) |
