Discontinued

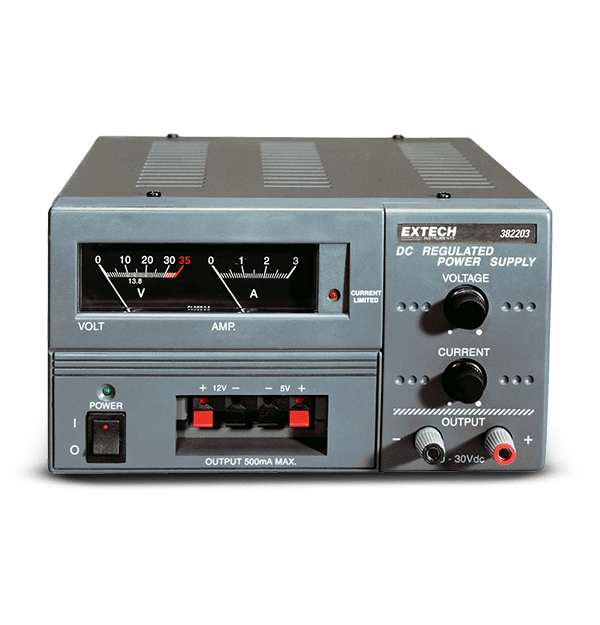

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
规格
| 一般参数 | |
|---|---|
| 固定输出 | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| 波纹和噪声 | <5mV |
| 线路电压调节 | <0.05%+10mV |
| 负载电压调节 | <0.05%+10mV |
| 输出电压 | 0 to 30V DC |
| 输出电流 | 0 to 3A DC |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| 电源 | 110/220VAC 50/60Hz |
| 认证 | CE |
| 重量 | 11lbs. (5kg) |
资源和支持
User Manual
Extech 382203 382213 手册
