Discontinued

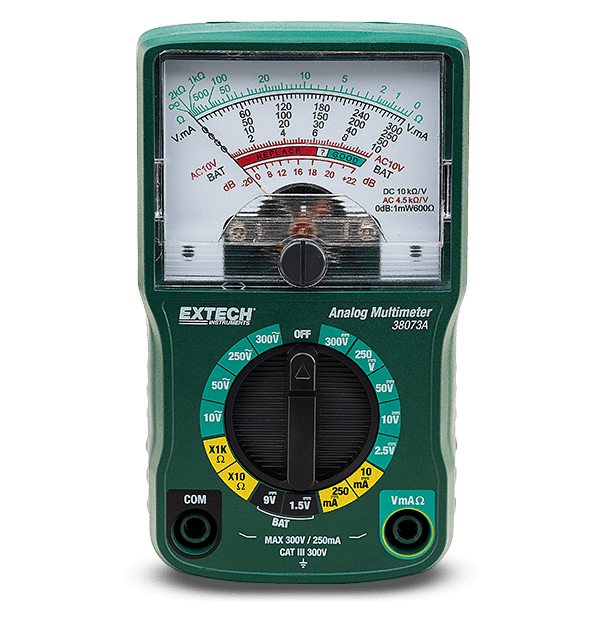

Extech 38073A

Mini Analog MultiMeter

Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.

规格

一般参数
交流电压 10V, 50V, 250V, 300V
交流电压基本精度 ±5% full scale
分贝数 -20 to 22dB (0dB: 1mW, 600Ω)
电池测试 9V and 1.5V
电阻 10Ω, 1kΩ
直流电压 2.5V, 10V, 50V, 250V, 300V
直流电压基本精度 ±4% full scale
直流电流 10mA, 250mA
直流电流基本精度 ±4% full scale
其他详情
保修 2 years
安全等级 CAT III-300V
尺寸 4.6 × 2.7 × 1.3" (116 × 68 × 34mm)
电源 1 × 9V battery
认证 CE,ETL
重量 4.2oz (120g)
