Discontinued

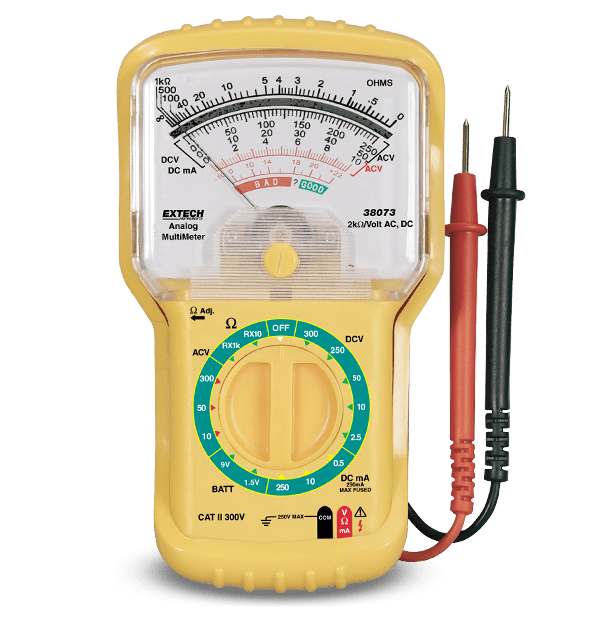

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 10V, 50V, 300V |
| 交流电压基本精度 | ±5% full scale |
| 分贝数 | -10 to 56dB (0dB, 1mW, 600Ω) |
| 电池测试 | 1.5V and 9V |
| 电阻 | 10kΩ, 1MΩ |
| 直流电压 | 2.5V, 10V, 50V, 250V, 300V |
| 直流电压基本精度 | ±5% full scale |
| 直流电流 | 0.5mA, 10mA, 250mA |
| 直流电流基本精度 | ±5% full scale |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CAT II-300V |
| 尺寸 | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| 显示屏 | Analog |
| 电源 | 1 × AA (1.5V) battery |
| 认证 | CE |
| 重量 | 8.2oz (288g) with holster and test leads |
