Discontinued

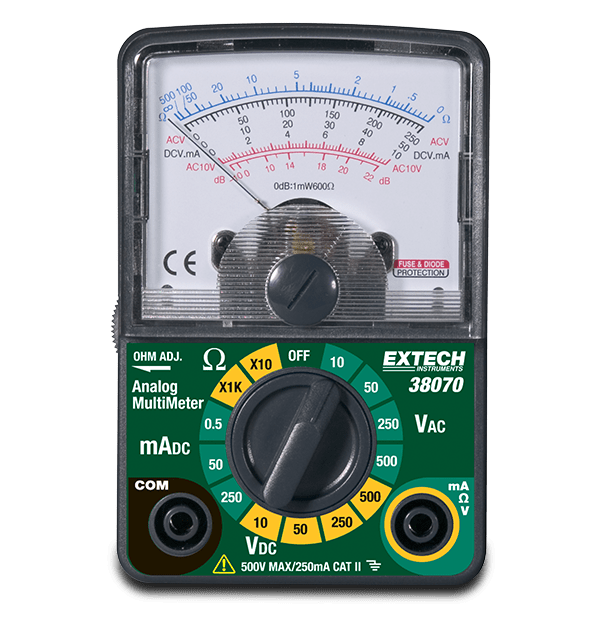

Extech 38070
Compact Analog MultiMeter
Extech’s 38070 Compact Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size and detachable leads. This compact and affordable multimeter is equipped with measurement capabilities that are ideal for the hobbyist, handyman, electronics tinkerer, or DIYer. Use this meter to perform basic troubleshooting on anything connected to an outlet. Analog meters like this one are also useful for illustrating adjustments made to a circuit between relative high and low settings. Includes test leads, one AA battery, and a user manual.
规格
| 一般参数 | |
|---|---|
| 交流电压 | 10V, 50V, 250V, 500V |
| 交流电压基本精度 | ±4% full scale |
| 分贝数 | -10 to 56dB (0dB, 1mW, 600Ω) |
| 电阻 | 10kΩ, 1MΩ |
| 直流电压 | 10V, 50V, 250V, 500V |
| 直流电压基本精度 | ±4% full scale |
| 直流电流 | 0.5mA, 50mA, 250mA |
| 直流电流基本精度 | ±4% full scale |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CAT II-500V |
| 尺寸 | 3.82 × 3.34 × 1.3" (97 × 65 × 33mm) |
| 显示屏 | Analog |
| 电源 | 1 × AA (1.5V) battery |
| 认证 | CE, UL |
| 重量 | 3.88oz (110g) |
资源和支持
User Manual
Extech 38070 手册
