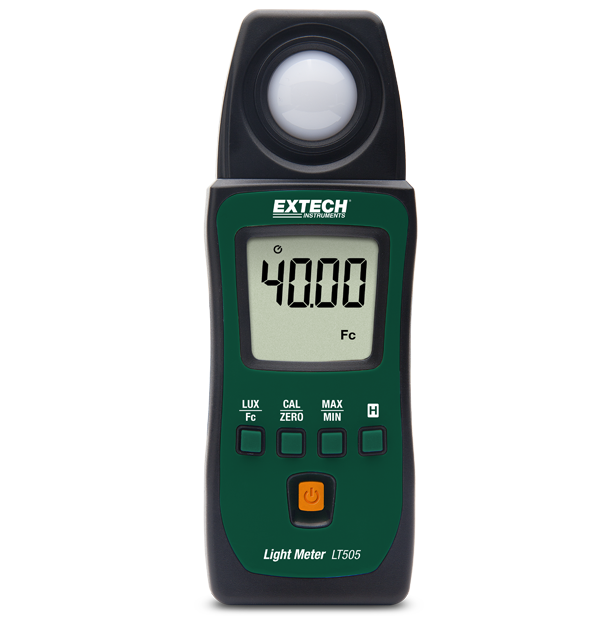

LT505: Pocket Light Meter

Wide Range Foot-Candle/Lux Light Meter

Extech’s pocket-sized autoranging Light Meter offers wide light intensity ranges measuring up to 40,000Fc (400,000Lux) with high resolution to 0.01Fc (0.1Lux). Ideal for indoor lighting tests and for checking security and safety illumination in parking garages, night time ATM areas, stairwells, landings, and hallways.

$136.49

ADD TO CART Check Distributor Stock

Features:

Measure light levels in Foot-Candle (Fc) or Lux units using a precision photo diode with cosine and color correction filter
Zero/Calibration function
Data Hold and Min/Max functions
Auto power off with disable
Tripod mount (optional TR100 Tripod sold separately)
Complete with light sensor cover, two AAA batteries, and pouch

Specifications:

Specifications	Range	Max Resolution	Basic Accuracy
Foot-Candle (Fc)	99.99Fc, 999.9Fc, 9999Fc, 40,000Fc	0.01Fc	±3%rdg + 3 digits
Lux	999.9Lux, 9999Lux, 99,990Lux, 400,000Lux	0.1Lux	±3%rdg + 3 digits
Dimensions	5.3x1.9x0.2" (133x48x23mm)
Weight	8.8oz (250g) with batteries

Downloads:

Features:

Measure light levels in Foot-Candle (Fc) or Lux units using a precision photo diode with cosine and color correction filter
Zero/Calibration function
Data Hold and Min/Max functions
Auto power off with disable
Tripod mount (optional TR100 Tripod sold separately)
Complete with light sensor cover, two AAA batteries, and pouch

Specifications:

Specifications	Range	Max Resolution	Basic Accuracy
Foot-Candle (Fc)	99.99Fc, 999.9Fc, 9999Fc, 40,000Fc	0.01Fc	±3%rdg + 3 digits
Lux	999.9Lux, 9999Lux, 99,990Lux, 400,000Lux	0.1Lux	±3%rdg + 3 digits
Dimensions	5.3x1.9x0.2" (133x48x23mm)
Weight	8.8oz (250g) with batteries
