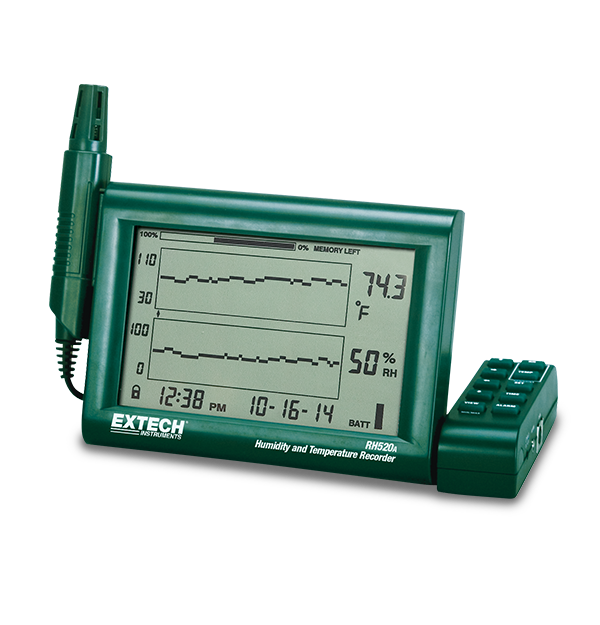

Extech RH520A-220
Humidity+Temperature Chart Recorder with Detachable Probe (220V)
The Extech RH520A-220 is a paperless chart recorder that provides simultaneous digital and graphical display of relative humidity and temperature. The display also shows dew point, date and time and min/max measurements. Stored readings can be recalled on the display or downloaded to a PC to obtain a permanent record. Provisions for wall mounting or the control panel swivels to act as a desk stand. The user can set audible and visual alarms with high and low limits for humidity and temperature. ExChart software calculates wet bulb and grains per pound (GPP). Comes complete with detachable sensor probe with 1 meter cable, RS-232 cable with USB adapter, Windows-compatible software, 220 VAC adapter, and three AA batteries.
Spécifications
| General | |
|---|---|
| Relative Humidity | 10.0 to 95.0% |
| Relative Humidity Basic Accuracy | ±3% |
| Temperature (Air) | -20.0 to 140.0 °F (-28.0 to 60.0 °C) |
| Temperature (Air) Basic Accuracy | ±1.8 °F/ ±1 °C |
| Additional Details | |
|---|---|
| Certifications | CE, NIST |
| Dimensions | 5 × 7.7 × 0.9" (129 × 195 × 22mm) |
| Power | 3 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 12.6oz (357g) |
