Discontinued

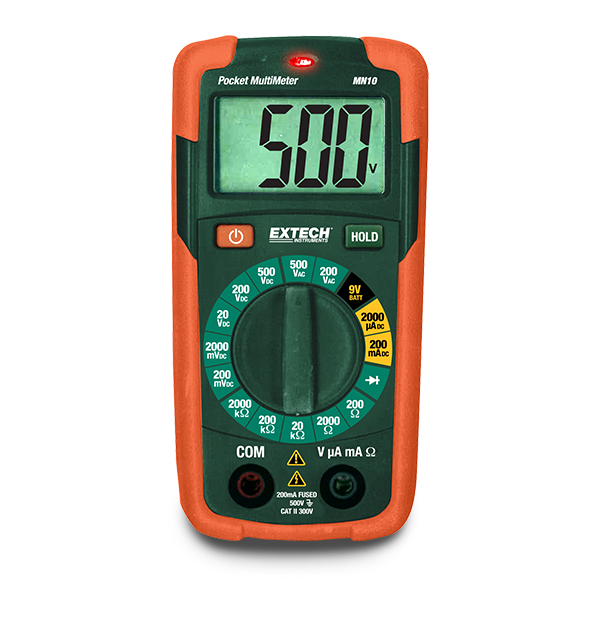

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Spécifications
| General | |
|---|---|
| AC Voltage | 500V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Battery Test | 9V |
| DC Current | 200mA |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 1µA |
| DC Voltage | 500V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 2000kΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Power | 1 × A23 (12V) battery |
| Safety Category | CATII - 300V |
| Warranty | 1 year |
| Weight | 3.6oz (102g) |
