Discontinued

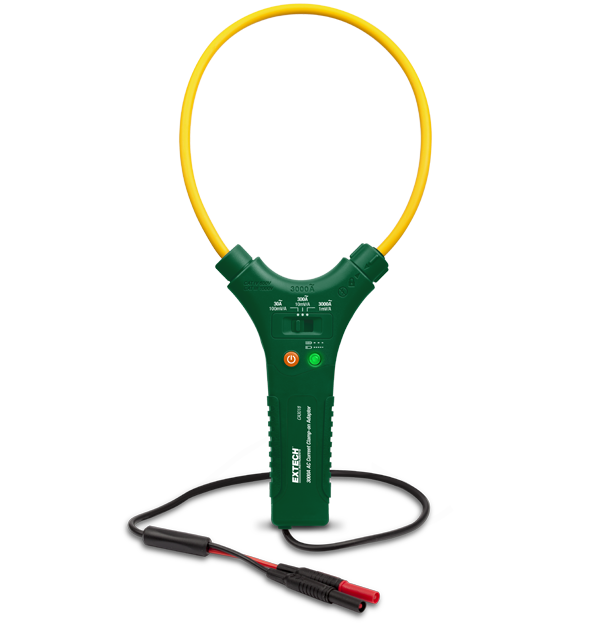

Extech CA3018
3000A AC Flex Clamp-on Adaptor
The Extech CA3018 is a 3000A AC flex clamp-on adaptor for multimeters and clamp on meters with standard sized banana plugs. The CA3018 is an 45.7 cm (18 in) flexible clamp capable of measuring AC Currents up to 3000 A. Complete with built-in flex clamp cable, 2 m (6.6 ft) lead with banana plugs, and two AAA batteries. UL listed with a CAT IV 600 V safety rating.
Spécifications
| General | |
|---|---|
| AC Current | 30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output) |
| AC Current Basic Accuracy | ±3% full scale (45 to 500Hz) |
| AC Current Max Resolution | 0.01A |
| Jaw Size | 18" (45.7cm) |
| Additional Details | |
|---|---|
| Certifications | CE, UL, NIST |
| Dimensions | 13.8 × 5.1 × 1" (350 × 130 × 25mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 7.1oz (200g) |
