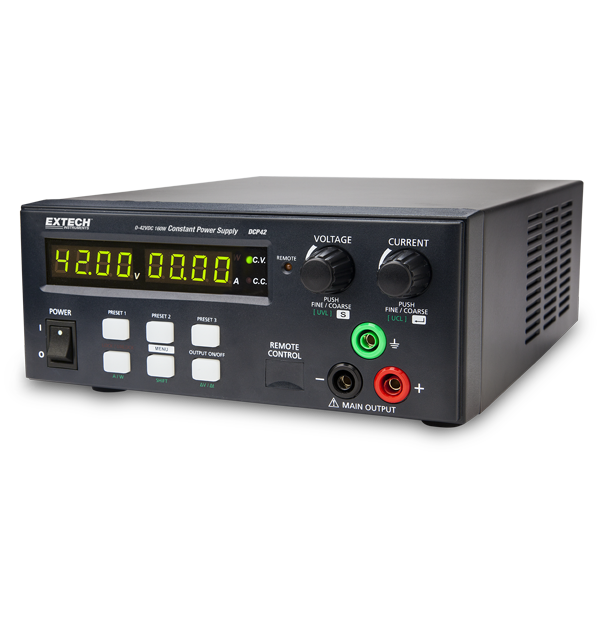

Extech DCP42
160W Switching Power Supply
The Extech DCP42 is a 160 W Switching Power Supply. The single-output, continuous power supply with USB offers high efficiency electrical power conversion for greater energy conservation and lighter weight. Complete with power cord, software, and USB cable. Software includes DC ramp and waveform generator.
Technische Daten
| General | |
|---|---|
| Line Current Regulation | ≤0.1% (90-264V AC) |
| Line Voltage Regulation | ≤0.02% (90-264V AC) |
| Load Current Regulation | ≤0.5% (10-90% rated voltage) |
| Load Voltage Regulation | ≤0.15% (10-100% rated current) |
| Output Current | 0 to 10A |
| Output Current Basic Accuracy | ±(0.2% + 5 counts) |
| Output Voltage | 0 to 42V |
| Output Voltage Basic Accuracy | ±(0.2% + 5 counts) |
| Ripple and Noise | ≤5m Vrms, ≤50m Vp-p |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.9 × 3.7 × 9.5" (200 × 95 × 245mm) |
| Warranty | 2 years |
| Weight | 5lbs (2.3kg) |
