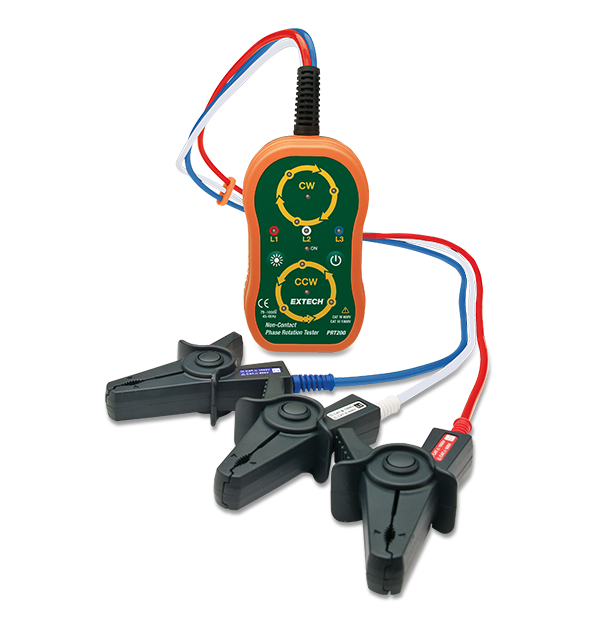

PRT200: Non-Contact Phase Sequence Tester

Tests up to 1000VAC with visual/audible indication

The PRT200 is a non-contact phase sequence tester that tests up to 1000 VAC with visual/audible indication. The tester has a 45 to 65Hz frequency range, features adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight, low battery warning and fully insulated alligator clips with wide jaws. The product has a CAT IV 600 Volt safety rating and is complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.

$199.99

ADD TO CART Check Distributor Stock

Features:

75 to 1000VAC input voltage with 45 to 65Hz frequency range
LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
Fully insulated alligator clips with wide jaws
Low battery warning
Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case

Specifications:

Specifications	Range
Measurement Principle	Static induction
Input Voltage	75 to 1000VAC
Frequency Range	45 to 65Hz
Max conductor diameter	33mm (1.3")
Probe length	1.5m (59")
Auto-Off	5 min. without sequence detection
Low Battery Warning	Power LED flashes
Batteries	4 x 1.5V AA
Current consumption	15mA
Operating Temperature & Humidity	-10°C to 50°C (14°F to 122°F) Max. 80% R.H.
Storage Temperature & Humidity	-20°C to 60° (-4°F to 140°F) Max. 80% R.H.
