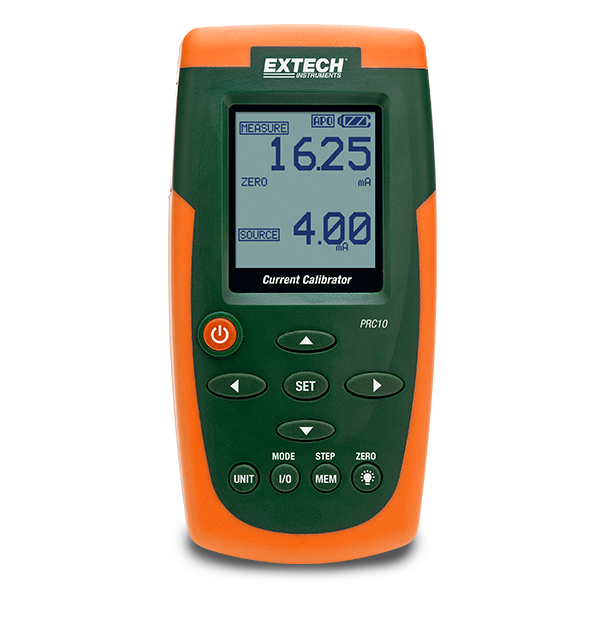

PRC10: Current Calibrator/Meter

Precision Current Source/Measure Calibrator

The PRC10 enables plant maintenance and electrical technicians to test and calibrate a wide variety of process control equipment, including transmitters, transducers, indicators, sensors, instrumentation, robotic systems, thermocouples, and other industrial system components. Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case.

$409.99

ADD TO CART Check Distributor Stock

Features:

0 to 24mA (-25 to 125%) readout
24V DC power source for 2-wire current loop
Up to five user adjustable calibration presets
Palm-sized double molded housing and large dot-matrix digital backlit LCD
Standard banana I/O ports
Large battery bank for extended work cycle
External power adapter for continuous work cycle
Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case

Specifications:

Specifications	Range
Source	Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%)
Measure	0 to 50mA current signal (-25 to 230%)
Power/Measure	Provides power (24VDC) to loop & measures current
Input/Output	Ranges and Displays	Resolution
	0 to 19.99mA	0.01mA
	0 to 24.0mA	0.1mA
	0 to 1999mV	1mV
	0 to 20.00V	10mV
Accuracy	0.01% ±1 digit
Dimensions	6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
Weight	8.2oz (232g)

Downloads:

Accessories:

UA100-240 - Universal Power Adaptor

Features:

0 to 24mA (-25 to 125%) readout
24V DC power source for 2-wire current loop
Up to five user adjustable calibration presets
Palm-sized double molded housing and large dot-matrix digital backlit LCD
Standard banana I/O ports
Large battery bank for extended work cycle
External power adapter for continuous work cycle
Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case

Specifications:

Specifications	Range
Source	Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%)
Measure	0 to 50mA current signal (-25 to 230%)
Power/Measure	Provides power (24VDC) to loop & measures current
Input/Output	Ranges and Displays	Resolution
	0 to 19.99mA	0.01mA
	0 to 24.0mA	0.1mA
	0 to 1999mV	1mV
	0 to 20.00V	10mV
Accuracy	0.01% ±1 digit
Dimensions	6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
Weight	8.2oz (232g)

Downloads:

Accessories:

UA100-240 - Universal Power Adaptor
