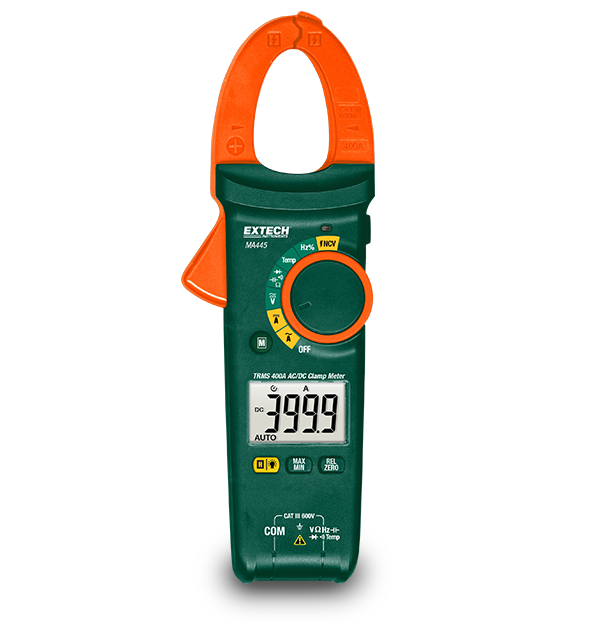

Extech MA445

400A True RMS AC/DC Clamp Meter + NCV

$129.00

Three models to choose from, with or without True RMS and AC or AC/DC Current functions. Choose True RMS model for accurate readings of non-sinusoidal waveforms, model with DC Current function for automotive applications, or model with Type K function when applications require Temperature measurements. The MA440 Series meters are fully loaded with multimeter functions and built-in non-contact voltage (NCV) detector to meet your application needs!

For accurate readings regardless of waveforms

Functions include: NCV, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity

Relative mode for Capacitance, DC Zero and Offset Adjustment, Data Hold, Max/Min, Auto Power Off and Low Battery Indicator

Specifications

General
AC Current	400.00A, 1500.0A
AC Current Basic Accuracy	±(2.8% of reading + 30 digits)
AC Current Max Resolution	0.01A
AC Voltage	400.00mV, 4.000V, 40.00V, 750.0V
AC Voltage Basic Accuracy	±(1.0% of reading + 30 digits)
AC Voltage Max Resolution	0.01mV
Capacitance	400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF
Capacitance Max Resolution	0.01nF
Continuity	Yes
DC Current	400.00A, 1500.0A
DC Current Basic Accuracy	±(2.5% of reading + 30 digits)
DC Current Max Resolution	0.01A
DC Voltage	400.00mV, 4.0000V, 40.000V, 1000.0V
DC Voltage Basic Accuracy	±(0.1% of reading + 4 digits)
DC Voltage Max Resolution	0.01mV
Diode Test	Yes
Frequency	40Hz to 40MHz
Frequency Basic Accuracy	±(0.3% of reading + 2 digits)
Frequency Max Resolution	0.001Hz
Jaw Size	2.0" (52mm), conductors up to 500MCM
Resistance	400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ
Resistance Max Resolution	0.01Ω
Temperature (Type K) Max Resolution	-148 to 1832°F (-100 to 1000°C)
Temperature (Type N)	±(1% of reading + 4.5°F/2.5°C)
Temperature (Type N) Basic Accuracy	0.1°F/°C
True RMS	Yes

Additional Details
Certifications	CE
Dimensions	11.6 × 4.1 × 1.9" (294 × 105 × 47mm)
Display	40000/4000-count segment LCD with bargraph and backlighting
Power	1 × 9V battery
Safety Category	CATIV - 600V
Warranty	2 years
Weight	18.9oz (536g)
