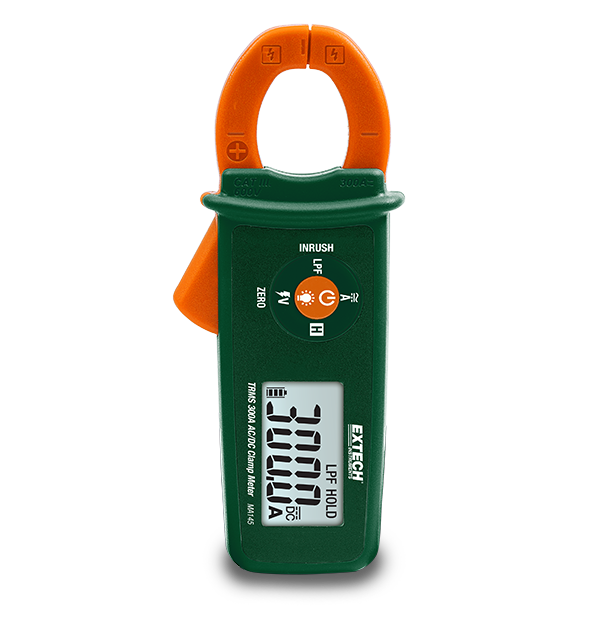

MA145: True RMS 300A AC/DC Clamp Meter

Compact AC/DC Clamp Meter with NCV Detector

The MA145 is a Compact AC/DC Clamp Meter with NCV Detector. This Clamp meter takes True RMS measurements for accurate readings of noisy, distorted or non-sinusoidal waveforms. The MA145 can measure up to 300A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600V safety rating.

$139.99

ADD TO CART Check Distributor Stock

Features:

True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Compact 0.8" (22mm) jaw size accommodates conductors up to 300MCM and allows measurements in tight locations
Zero function for accurate DC measurements
Unique Smart Auto Sense feature
Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals
Built-in Non-Contact Voltage (NCV) detector for quick detection of live voltage
Inrush current measurement
6000 count backlit LCD display
Smart Data Hold: Audiovisual alert when a new reading exceeds 50 digits of a held reading
Low battery indicator and Auto Power Off feature
Complete with carrying case and two LR44 batteries

Specifications:

Specifications	Range
AC Current (max resolution)	60A, 300A (0.01A)
DC Current (max resolution)	60A, 300A (0.01A)
Basic accuracy	AC: ±1.5%, DC: ±1.5%
Non-Contact Voltage (NCV)	80 to 600V
Dimensions/ Weight	5.8x2.4x1.2" (147x60x31mm)/ 4.9oz (140g)

Downloads:

Accessories:

480172 - AC Line Splitter
