Extech HDV-25CAM-10G

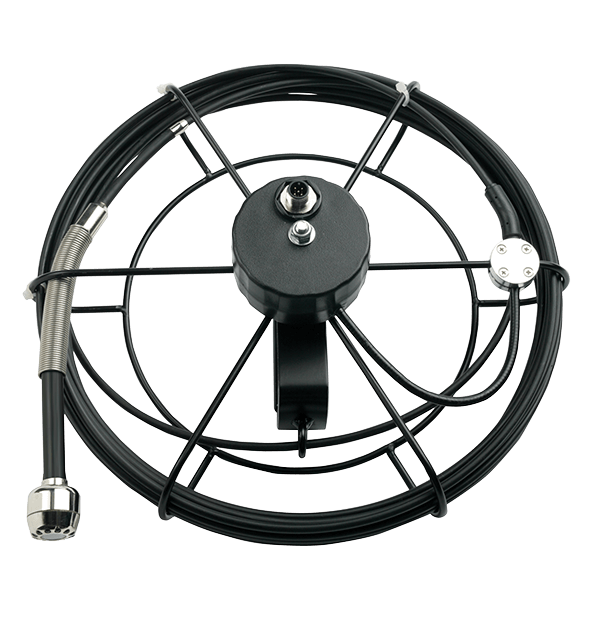

HDV-25CAM-10G: 25mm VideoScope Camera Head

73° FOV / Long Depth of Field lens and 10m Fiberglass Cable

The HDV-25CAM-10G is an optional camera for use with the HDV600 VideoScope series. This 25mm Camera head with a long depth of field lens, features a 73° field of view. Ten meter fiberglass-core cable length.

$1,449.00

ADD TO CART Check Distributor Stock

Features:

25mm diameter camera head with a long depth of field lens
10m (32.8ft) fiberglass-core probe with 12 LEDs
73° FOV (field of view)

Specifications:

Specifications	Range
Resolution	640 x 480 pixels
Length	10m (32.8')
Outer diameter (O.D.)	25mm (0.98")
Focus distance	6cm to ∞ (2.36" to ∞)
Housing	copper with nickel coating
Field of View	73°
Number of LEDs	12
Lamp Output	8000 Lux at 20mm
Operating Temperature	-20 to 70°C (-4 to 158°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)

Downloads:

Features:

25mm diameter camera head with a long depth of field lens
10m (32.8ft) fiberglass-core probe with 12 LEDs
73° FOV (field of view)

Specifications:

Specifications	Range
Resolution	640 x 480 pixels
Length	10m (32.8')
Outer diameter (O.D.)	25mm (0.98")
Focus distance	6cm to ∞ (2.36" to ∞)
Housing	copper with nickel coating
Field of View	73°
Number of LEDs	12
Lamp Output	8000 Lux at 20mm
Operating Temperature	-20 to 70°C (-4 to 158°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)

Downloads:
