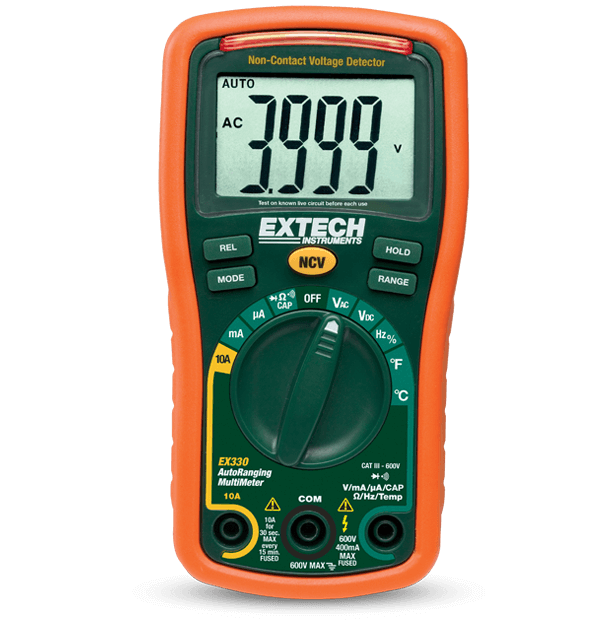

The EX330 is a compact autoranging multimeter which features extra large 4000 count display and a built-in non-contact AC voltage detector. Advanced function include Frequency, Duty Cycle, Capacitance and Temperature, Diode test and continuity. Rubber holster protects meter. Includes test leads, Type K temperature probe, two AAA batteries and tilt stand.
Specifications
| General | |
|---|---|
| AC Current | 0.1µA to 10A |
| AC Voltage | 0.1mV to 600V |
| Capacitance | 0.001nF to 200µF |
| Continuity | Yes |
| DC Current | 0.1µA to 10A |
| DC Voltage | 0.1mV to 600V |
| Diode Test | Yes |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | 0.001Hz to 10MHz |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 0.1Ω to 40MΩ |
| Temperature (Type K) Max Resolution | -4 to 1382°F (-20 to 750°C) |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 4000-count segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 1000V, CATIII - 600V |
| Warranty | 2 years |
| Weight | 9oz (260g) |
Resources & Support
User Manual
Extech EX330 User Manual
Certification
Extech EX330 Declaration of Conformity
Datasheet
Extech EX3xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
