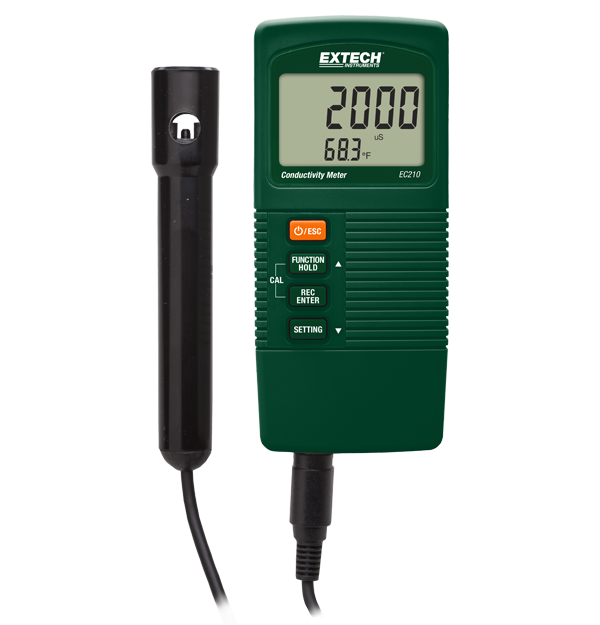

EC210: Compact Conductivity/TDS Meter
Measures Conductivity, TDS and Temperature
Compact handheld Conductivity Meter with long life carbon rod combination electrode measures Conductivity, TDS and Temperature. Units of measure include μS/cm, mS/cm, ppm, °F, and °C. The meter features three ranges for Conductivity and TDS plus adjustable Temperature compensation factor to maintain accuracy.
Features:
- Simultaneous display of Conductivity or TDS with Temperature
- Three ranges for Conductivity and TDS plus adjustable Temperature compensation factor to maintain accuracy
- Automatic Temperature Compensation
- Temperature compensation factor adjustable between 0 to 5.0% per °C
- Min/Max and Data Hold functions
- Auto Power Off with disable feature
- Use optional 1413µS Conductivity Standard (EC-1413-P) for calibration
- Complete with Conductivity cell and 39" (1m) cable, 9V battery, and soft case
Downloads:
Specifications:
| Specifications | Range |
|---|---|
| Conductivity | 2000µS/cm, 20mS/cm, 100mS/cm |
| TDS/Salinity | 1200ppm, 12,000ppm, 66,000ppm |
| Temperature | 32 to 122°F (0 to 50°C) |
| Max. Resolution | 1µS/cm, 0.01mS/cm, 0.1mS/cm, 1ppm
10ppm, 100ppm, 0.1°F/°C |
| Basic Accuracy | ±2% FS, ±1.5°F/0.8°C |
| Dimensions | Meter: 5.3 x 2.4 x 1.3" (135 x 60 x 33mm)/ 10.4oz (295g) includes probe and battery |
Accessories:
- EC210-P - Replacement Conductivity Probe
- EC-84-P - 84µS Conductivity Standard (2 Bottles)
- EC-1413-P - 1413µS Conductivity Standard (2 Bottles)
- EC-12880-P - 12880µS Conductivity Standard (2 Bottles)
Features:
- Simultaneous display of Conductivity or TDS with Temperature
- Three ranges for Conductivity and TDS plus adjustable Temperature compensation factor to maintain accuracy
- Automatic Temperature Compensation
- Temperature compensation factor adjustable between 0 to 5.0% per °C
- Min/Max and Data Hold functions
- Auto Power Off with disable feature
- Use optional 1413µS Conductivity Standard (EC-1413-P) for calibration
- Complete with Conductivity cell and 39" (1m) cable, 9V battery, and soft case
Downloads:
Specifications:
| Specifications | Range |
|---|---|
| Conductivity | 2000µS/cm, 20mS/cm, 100mS/cm |
| TDS/Salinity | 1200ppm, 12,000ppm, 66,000ppm |
| Temperature | 32 to 122°F (0 to 50°C) |
| Max. Resolution | 1µS/cm, 0.01mS/cm, 0.1mS/cm, 1ppm
10ppm, 100ppm, 0.1°F/°C |
| Basic Accuracy | ±2% FS, ±1.5°F/0.8°C |
| Dimensions | Meter: 5.3 x 2.4 x 1.3" (135 x 60 x 33mm)/ 10.4oz (295g) includes probe and battery |
Accessories:
- EC210-P - Replacement Conductivity Probe
- EC-84-P - 84µS Conductivity Standard (2 Bottles)
- EC-1413-P - 1413µS Conductivity Standard (2 Bottles)
- EC-12880-P - 12880µS Conductivity Standard (2 Bottles)
