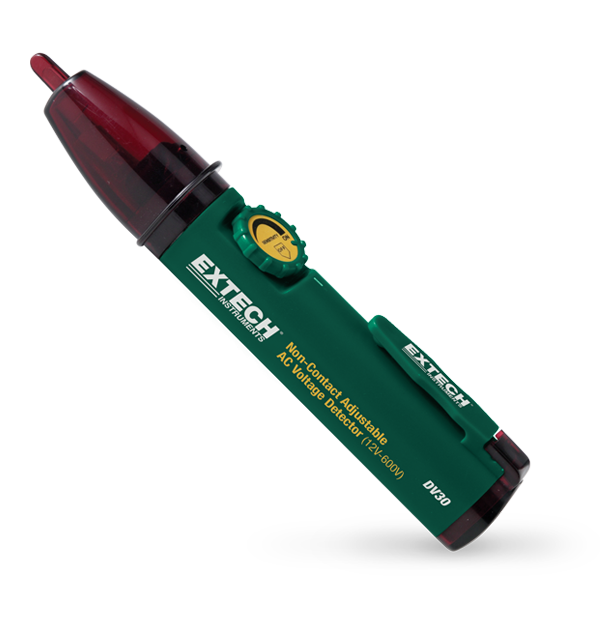

Extech DV30

DV30: Non-Contact Adjustable AC Voltage Detector

Non-contact detection of AC Voltage with Sensitivity adjust

The DV30 is an NCV Detector with a sensitivity adjustment to pinpoint the Voltage source. AC Voltage detection from 12 Volt to 600 VAC; CAT III-600 Volt safety rating. Complete with four LR44 button batteries and pocket clip.

$18.69

ADD TO CART Check Distributor Stock

Features:

Non-Contact detection of AC Voltage from 12VAC to 600VAC
Sensitivity adjustment increases or reduces sensor trigger threshold
Audible and visible voltage indication
Self test function

Specifications:

Specifications	Range
Voltage Sensitivity	12V to 600VAC (50 to 500Hz)
Operating Temperature/Humidity	-10°C to 50°C (14 to 122°F)
Storage Temperature	-20 to 60oC (-4 to 140°F)
Relative Humidity	<80%
Operating Altitude	7000 ft. (2000 meters) maximum.
Safety	This meter is intended for indoor use
Battery	4 LR44 batteries
Dimensions/Weight	155x28x25mm (6.3x0.75x1") / 42g (2oz) IEC 1010 Category III 600V

Downloads:

Features:

Non-Contact detection of AC Voltage from 12VAC to 600VAC
Sensitivity adjustment increases or reduces sensor trigger threshold
Audible and visible voltage indication
Self test function

Specifications:

Specifications	Range
Voltage Sensitivity	12V to 600VAC (50 to 500Hz)
Operating Temperature/Humidity	-10°C to 50°C (14 to 122°F)
Storage Temperature	-20 to 60oC (-4 to 140°F)
Relative Humidity	<80%
Operating Altitude	7000 ft. (2000 meters) maximum.
Safety	This meter is intended for indoor use
Battery	4 LR44 batteries
Dimensions/Weight	155x28x25mm (6.3x0.75x1") / 42g (2oz) IEC 1010 Category III 600V
