This product has been discontinued. Replaced by PRC20 - Thermocouple Calibrator

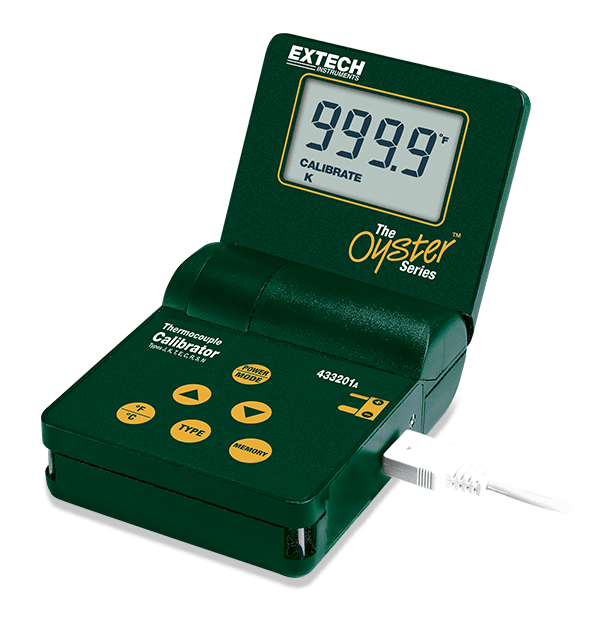

433201: Multi-Type Calibrator Thermometer

Source and measure 8 thermocouple type devices J, K, T, E, C, R, S, and N

This Thermometer Calibrator sources and measures 8 thermocouple types: J, K, T, E, C, R, S, and N. Displays output in terms of mV or-Degrees F/-Degrees C based on its built-in thermocouple tables. Five stored calibration values for quick calibrations. Oyster case with "flip-up" display is ideal for handheld or benchtop applications. Complete with 9V rechargeable battery, Type K Thermocouple cable, Copper calibration cable, and 115-Volt AC Adaptor/Charger.

Check Distributor Stock

Features:

One model for multiple thermocouple types with precision output displayed as mV or °C/°F
Microprocessor assures maximum accuracy to 0.15% of reading over wide ranges
High Accuracy Calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters,controllers or recorders.
Complete with universal AC adaptor and AU/EU/UK/US plugs

Specifications:

Specifications	Ranges for Calibrate and Measure modes		Accuracy
Type J	-58 to 1830°F	-50 to 1000°C)	0.15% rdg ±1°
Type K	-58 to 2498°F	(-50 to 1370°C)	0.15% rdg ±1°
Type T	-184 to 752°F	(-120 to 400°C)	0.15% rdg ±1°
Type E	58 to 1382°F	(-50 to 750°C)	0.15% rdg ±1°
Type C	32 to 3272°F	(0 to 1800°C	0.15% rdg ±1°
Type R	32 to 3182°F	(0 to 1750°C)	0.15% rdg ±1°
Type S	32 to 3182°F	(0 to 1750°C)	0.15% rdg ±1°
Type N	-58 to 2372°F	(-50 to 1300°C)	0.15% rdg ±1°
Voltage	-5.00mV to +55.00mV	10µV	10µV ±1d
Resolution	0.1° (up to 999.9) or 1° (over 999.9°)
Cold Junction Compensation	0.03°C/°C (0.02°F/°F)
Input Impedance	10MΩ
Sampling Time	4 times/second
Dims/Weight	3.8 x 4.2 x 1.8" (96 x 108 x 45mm)/ 17oz

Downloads:

Features:

One model for multiple thermocouple types with precision output displayed as mV or °C/°F
Microprocessor assures maximum accuracy to 0.15% of reading over wide ranges
High Accuracy Calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters,controllers or recorders.
Complete with universal AC adaptor and AU/EU/UK/US plugs

Specifications:

Specifications	Ranges for Calibrate and Measure modes		Accuracy
Type J	-58 to 1830°F	-50 to 1000°C)	0.15% rdg ±1°
Type K	-58 to 2498°F	(-50 to 1370°C)	0.15% rdg ±1°
Type T	-184 to 752°F	(-120 to 400°C)	0.15% rdg ±1°
Type E	58 to 1382°F	(-50 to 750°C)	0.15% rdg ±1°
Type C	32 to 3272°F	(0 to 1800°C	0.15% rdg ±1°
Type R	32 to 3182°F	(0 to 1750°C)	0.15% rdg ±1°
Type S	32 to 3182°F	(0 to 1750°C)	0.15% rdg ±1°
Type N	-58 to 2372°F	(-50 to 1300°C)	0.15% rdg ±1°
Voltage	-5.00mV to +55.00mV	10µV	10µV ±1d
Resolution	0.1° (up to 999.9) or 1° (over 999.9°)
Cold Junction Compensation	0.03°C/°C (0.02°F/°F)
Input Impedance	10MΩ
Sampling Time	4 times/second
Dims/Weight	3.8 x 4.2 x 1.8" (96 x 108 x 45mm)/ 17oz
