This product has been discontinued. Replaced by IR270 - 12:1 Fast-Response IR Thermometer with Color Alert

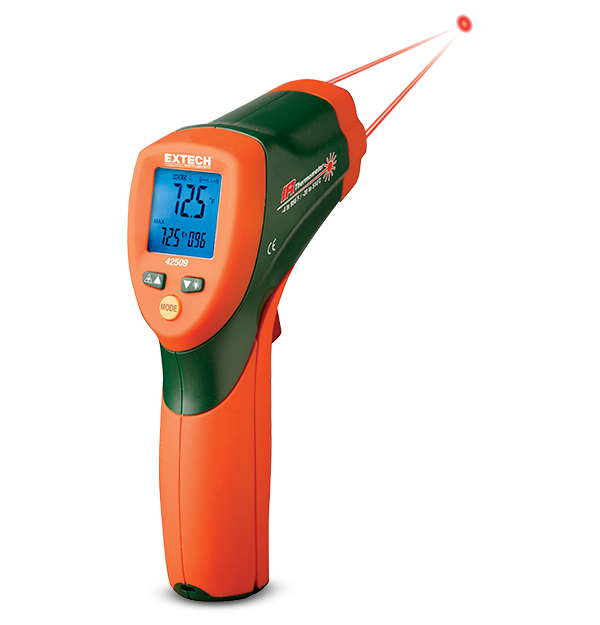

42509: Dual Laser IR Thermometer with Color Alert
High/Low Alarms with Vision Alarm Function
The 42509 is a Dual Laser IR Thermometer with Color Alert. Meter has dual lasers for quick accuracy in target area and programmable High/Low alarms. Measures up to 950°F (510°C). Automatic blue backlit dual LCD display. Adjustable emissivity increases measurement accuracy for different surfaces. Complete with case and 9 Volt battery.
Features:
- Fast and accurate measurements at 12" where the two lasers converge with 12:1 field of view
- Measures up to 950°F (510°C)
- Automatic blue backlit dual LCD display
- Red backlit display flashes when reading exceeds High or Low set points
- Exclusive 150 millisecond instantaneous response for capturing spikes in temperature
- Max mode captures and holds rapidly changing temperatures
- Adjustable emissivity increases measurement accuracy for different surfaces
- Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points
- Double molded housing
- Complete with case and 9V battery
Specifications:
| Specifications | Range |
|---|---|
| Laser Convergence Distance | 12" (30.5cm) |
| Range | -4 to 950°F (-20 to 510°C) |
| Repeatability | ±0.5% or 1.8°F/1°C |
| Basic Accuracy | ±(1% of rdg + 1°C) |
| Max resolution | 0.1°F/°C |
| Emissivity | 0.10 to 1.00 Adjustable |
| Field of View (Distance to Target) | 12:1 |
| Dimensions/ Weight | 5.7x4x1.7" (146x104x43mm) / 5.7oz (163g) |
Downloads:
Videos:
Features:
- Fast and accurate measurements at 12" where the two lasers converge with 12:1 field of view
- Measures up to 950°F (510°C)
- Automatic blue backlit dual LCD display
- Red backlit display flashes when reading exceeds High or Low set points
- Exclusive 150 millisecond instantaneous response for capturing spikes in temperature
- Max mode captures and holds rapidly changing temperatures
- Adjustable emissivity increases measurement accuracy for different surfaces
- Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points
- Double molded housing
- Complete with case and 9V battery
Specifications:
| Specifications | Range |
|---|---|
| Laser Convergence Distance | 12" (30.5cm) |
| Range | -4 to 950°F (-20 to 510°C) |
| Repeatability | ±0.5% or 1.8°F/1°C |
| Basic Accuracy | ±(1% of rdg + 1°C) |
| Max resolution | 0.1°F/°C |
| Emissivity | 0.10 to 1.00 Adjustable |
| Field of View (Distance to Target) | 12:1 |
| Dimensions/ Weight | 5.7x4x1.7" (146x104x43mm) / 5.7oz (163g) |
Downloads:
Videos:
