This product has been discontinued. Replaced by 382213 - Digital Triple Output DC Power Supply

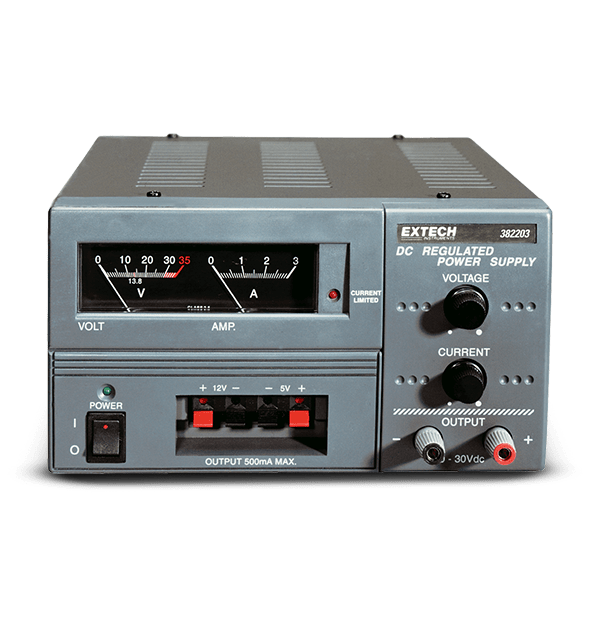

382203: Analog Triple Output DC Power Supply
Adjustable to 30V/3A with fixed 5V and 12V outputs
382203 is an Analog Triple Output DC Power Supply with Overload and Short Circuit Protection. Constant Voltage or Current supply. Current Limiting Front Panel LED Indicator. Binding Post Terminals for Variable Supply. Complete with power cord.
Features:
- Adjustable Voltage and Current output
- Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
- Constant Voltage or Current
- Current limiting indicator
- Overload and short circuit protection
- Binding post terminals for variable supply
Specifications:
| Specifications | Range |
|---|---|
| Voltage Output, DC | 0 to 30 Volts |
| Current Output, DC | 0 to 3 Amps |
| Ripple and Noise | <5mV |
| Line Regulation | <0.05%+10mV |
| Load Regulation | <0.05%+10mV |
| Fixed Output Voltage | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Display | 382203 - Analog or 382213 - Digital (V&A),3 digit 0.1 res. LCD |
| Power | 110/220VAC 50/60Hz |
| Dimensions | 6 x 5.6 x 9.5" (152 x 142 x 242) |
| Weight | 11lbs. (5kg) |
Features:
- Adjustable Voltage and Current output
- Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
- Constant Voltage or Current
- Current limiting indicator
- Overload and short circuit protection
- Binding post terminals for variable supply
Specifications:
| Specifications | Range |
|---|---|
| Voltage Output, DC | 0 to 30 Volts |
| Current Output, DC | 0 to 3 Amps |
| Ripple and Noise | <5mV |
| Line Regulation | <0.05%+10mV |
| Load Regulation | <0.05%+10mV |
| Fixed Output Voltage | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Display | 382203 - Analog or 382213 - Digital (V&A),3 digit 0.1 res. LCD |
| Power | 110/220VAC 50/60Hz |
| Dimensions | 6 x 5.6 x 9.5" (152 x 142 x 242) |
| Weight | 11lbs. (5kg) |
